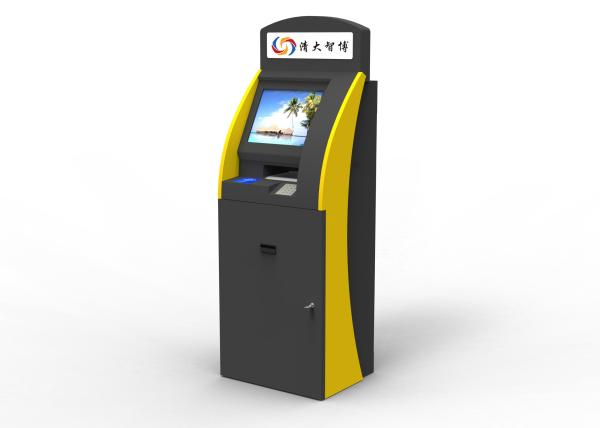

Street Interactive Information Kiosk Laser / Inkjet Printer A4 Size Maximum 2100 Sheets

  • 1
  • 2

Brand Name : LKS / ODM / OEM

Model Number : LKS8320

Certification : CE, FCC

Place of Origin : China

MOQ : 5 Units

Payment Terms : T/T in advance, Western Union, L/C

Supply Ability : 1000 units per month

Delivery Time : 4-6 weeks upon payment

Packaging Details : Film wrap, foam and wooden box

Material : Cold Rolled Steel or Stainless steel

Material Feature : Anti-vandal, Anti-dust,Anti-acid,Anti-scratching,Waterproof

Size of the photo : A0 ~ A6 ;3R ~ 6R

Function : Photo taking / printing,A4 document printing

Size of the scanning : A4 maximum

Printer : Laser A4

Contact Now

Street Interactive Information Kiosk Laser / Inkjet Printer A4 Size Maximum 2100 Sheets


Standard configuration:

  1. 17 inch touch screen
  2. 17 inch monitor
  3. Speaker
  4. Webcam
  5. Photo printer
  6. Bank card reader
  7. Encypted card reader
  8. Bill validator
  9. Receipt printer
  10. UPS
  11. Outdoor free standing cabinet


Specification is as following:

ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size17 inch/19inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenScreen Size17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card ReaderInterfaceRS232
Card TypeSupport Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power VoltageDC 24V±5%
Card Entry methodMagnetic signal, Optoelectronic signal and rear card signal
Encrypted PinpadKeylift~span2,000,000 cycles
Key force2~3N
Key trip>2.5mm
Protection levelip65
Cashcode Bill acceptorValidation Rate96% or higher
Banknote InsertionFour-way
EscrowOne banknote
Capacity1000 notes Max
Epson receipt thermal printerAutocutterincluded
TechnologyThermal printing
Paper width80mm
Printing speed150mm/s
Data buffer4KB
InterfaceRS232 ,USB
Photo printerInterfaceHigh speed USB
Resolution4800*2400 maximum
Printing speed4.8ipm
UPSInput voltage145-290va
Output voltage200-255va
Max time for supplying a single PC3~20minutes (for single PC)
Digital Power SupplyAC input voltage range100~240VAC
Frequency50Hz to 60Hz
AC input voltage range100~240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam and wooden case



Other Optional hardware components List is as following:

  1. Barcode scanner
  2. Palm vein scanner
  3. WIFI or 3G Wireless module
  4. Thermal printer
  5. Coin acceptor
  6. 2D barcode scanner
  7. Intercom
  8. Passport scanner
  9. ID validation
  10. Advertising screen


Application:

  • HR room
  • Street
  • Supermarket
  • Tourism site
  • Retailer store
  • Gas station
  • Shopping Mall
  • Airport board room
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Lobby room
  • Street
  • Other Public area



Our Advantages:

Suitable for 24 / 7 operation

  • Desigh for higher standard and have a much longer life-cycle,Commecial-grade electronics
  • Accomplish multiple tasks in a single multi-function kiosk
  • Easy maintenance,user friendly


Cost-effective Solution

  • Quality proven hardward components from worldwide famous brands
  • No staff involved at all
  • Complete and competitive supply chain management

  • Outstanding and interactive Consumer/Customer seamless experience



Appearance

  • Eyesight attractive
  • Brand promotion by LOGO displaying and video advertising playing
  • Human engineering verification
  • High-quality design sketch
  • Elegant and noble design




The reason you choose LKS:

  1. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  2. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  3. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
  6. LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.
